Simple, Scalable and Efficient solutions

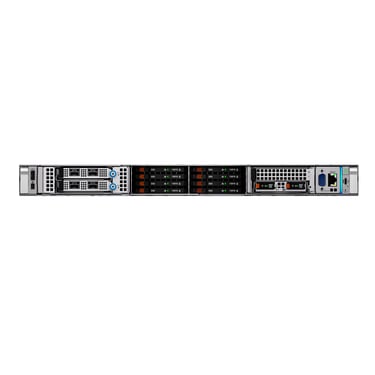

The 1U, one-socket PowerEdge R470 is tailored to help you reach your budgetary requirements with optimized power and balanced performance in your data center.
Technical Specifications
Processor
One Intel® Xeon 6 E-core processor with up to 144 cores per processor or
One Intel® Xeon 6 P-core processor with up to 86 Cores with R1S option
Memory
● 16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s
● Intel Xeon 6 E-core processor - supports 1 TB max
● Intel Xeon 6 P-core processor with up to 86 cores with R1S option - supports 4 TB max
● Supports registered ECC DDR5 DIMMs only
Note: The installed processor may reduce the operating speed of the DIMM
Storage Controllers
● Internal Controllers (RAID): PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter
● External Controllers: HBA465e, H965e(RAID)
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer with upto 2 x M.2 NVMe SSDs or USB
Drive Bays
Front Bays:
● Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB
● Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
● Up to 8 x 2.5-inch SATA/NVMe max 491.52 TB
● Up to 10 x 2.5 - inch SATA/NVMe (with 4 x 2.5 -inch universal) max 614.4 TB
● Up to 4 x 3.5 - inch SATA max 128 TB* (only supported with rear 2 x E3.S drives; not supported as standalone front-only configuration)
Rear Bays:
● Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB
Power Supplies
● 800W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
● 1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
● 1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
● 1500 W 277 Vac and HVDC Titanium, hot swap redundant*
● 1400W -48v DC Titanium, hot swap redundant
● 1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant*
Cooling Options
● Air cooling
Fans
● Up to 4 sets (dual fan module) hot swappable fans
Dimensions
Height — 42.8 mm (1.685 inches) • Width — 482.0 mm (18.97 inches) • Depth — 816.92 mm (32.16 inches) with bezel — 815.14 mm (32.09 inches) without bezel • Depth (Front I/O Configuration) — 829.44 mm (32.09 inches) without bezel
Note: Front I/O configuration will not have a bezel.
Form Factor
1U rack server
Embedded Management
● iDRAC
● iDRAC Direct
● iDRAC RESTful API with Redfish
● RACADM CLI
● iDRAC Service Module
Bezel
Optional security bezel
Security
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secured Component Verification (Hardware integrity check)
● Secure Boot
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC10 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified
● Chassis Intrusion Detection
GPU Options
Up to 4 x 75 W SW
Ports:
Front ports
● 1 x USB 2.0 Type - C port
● 1 x USB 2.0 Type A port (optional)
● 1 x Mini-DisplayPort (optional)
● 1 x DB9 Serial (with front I/O configuration)
● 1 x Dedicated BMC Ethernet port (with front I/O configuration)rt (with front I/O
Internal ports
● 1 x USB 3.1 Type A port
Rear ports
● 1 x Dedicated BMC Ethernet port
● 2 x USB 3.1 Type A ports
● 1 x USB 2.0
● 1 x VGA
PCIe
Up to 4 Gen5 PCIe slots (x16 connectors)
● Slot 1 -1 x8 Gen5 Low Profile
● Slot 1 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
● Slot 4 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
● Slot 31 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
● Slot 32 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
OCP Network options
● Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)
Slot Numbers: 2,5,31,32
Embedded NIC
1 Gb dedicated BMC Ethernet port
PCIe
Up to 8 x PCIe Gen4 slots
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Windows Server
● Windows Server Datacenter
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
