Optimized Power and Balanced Performance

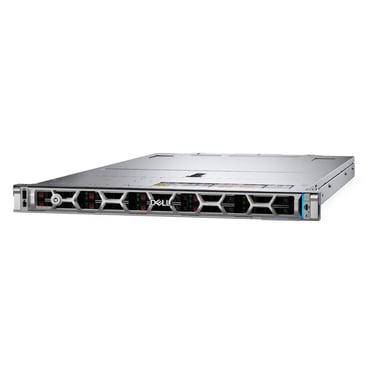

The Dell PowerEdge R670 is a 1U, two-socket rack server that enables high-performance computing for optimal power efficiency in your data center.
Technical Specifications
Processor
Two Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
Memory
● 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
● Supports registered ECC DDR5 DIMMs only
Storage controllers
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USB
● Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
Front Bays
● No Backplane configuration
● Up to 8 x EDSFF E3.S NVMe max 491.52 TB also with FIO configuration
● Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
● Up to 20 x EDSFF E3.S Gen5 NVMe max 1228.8 TB
● Up to 8 x 2.5 inch SATA/NVMe Direct/NVMe Raid max 491.52 TB
● 8 x 2.5-inch Universal 491.52 TB
● Up to 10 x 2.5 inch SATA max 38.4 TB
● Up to 2 x EDSFF E3.S Gen5 NVMe in the rear max 122.88 TB
Hot swap Power Supplies
● 1500 W Titanium 100—240 VAC or 240 VDC
● 1100 W Titanium 100—240 VAC or 240 VDC
● 800 W Titanium 100—240 VAC or 240 VDC
● 1100 W Platinum 100—240 VAC or 240 VDC
● 800 W Platinum 100—240 VAC or 240 VDC
● 1800 W HLAC Titanium 200—240 VAC or 240 VDC*
● 1500 W 277 VAC or 336 VDC*
● 1400 W LVDC -48 — -60 VDC
Cooling Options
Air cooling and Direct Liquid Cooling
Note : DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans
● High performance Silver (HPR SLVR) or Standard (STD) fans
● Up to 4 sets (dual fan module) hot swappable fans
Dimensions and Weight
Height — 42.8 mm (1.69 inches) • Width — 482 mm (18.98 inches) • Weight — 20.42 kg (45.02 pounds) • Depth (for rear I/O configuration) — 816.92 mm (32.20 inches) with bezel — 815.14 mm (32.09 inches) without bezel • Depth (for front I/O configuration) — 829.44 mm (32.66 inches) without bezel
Note: The front I/O configuration does not support the bezel.
Form Factor
1U rack server
Embedded Management
● iDRAC
● iDRAC Direct
● iDRAC RESTful API with Redfish
● RACADM CLI
● iDRAC Service Module (iSM)
● Quick Sync 2 wireless module
● NativeEdge Endpoint*
● NativeEdge Orchestrator*
Bezel
Optional security bezel
Security
● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown
● TPM 2.0 FIPS, CC-TCG certified
● Chassis Intrusion Detection
Network Options
2 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE*
Slot 31 1 x 16 OCP 3.0 on front riser
Slot 32 1 x 16 OCP 3.0 on front riser
Slot 2 1 x 16 OCP 3.0
Slot 5 1 x 8 Gen5 OCP 3.0 or 1 x 16 Gen5 OCP 3.0
BOSS
Slot 34 1 x 4 BOSS
Slot 3 1 x 4 BOSS
GPU options
Up to 3 x 75 W SW
Ports:
Front ports
● 1 x USB 2.0 Type C port
● 1 x USB 2.0 Type A port (optional)
● 1 x Mini-DisplayPort (optional
● 1 x DB9 Serial (with front I/O configuration)
● 1 x Dedicated ethernet port for iDRAC management

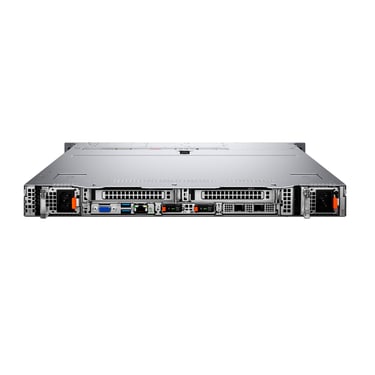

Rear ports
● 1 x Dedicated ethernet port for iDRAC management
● 1 x VGA
● 2 x USB 3.1 Type A ports
Internal port
● 1 x USB 3.1 Type A port
PCIe
● Up to 2 x 16 Gen5 PCIe slots
● Slot 31 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser
● Slot 32 1 x 16 Full Height - Half Length or Full Height - Full Length or 1 x 16 OCP 3.0 on front riser
● Up to 3 x 16 or 2 x 8 Gen5 PCIe slots
● Slot 1 1 x 16 Full Height - Half Length or Full Height - Full Length or 3 x 16 or 1 x 8 Low Profile - Half Length
● Slot 2 1 x 16 or 1 x 8 Low Profile - Half Length or 1 x 16 OCP 3.0
● Slot 4 1 x 16 Full Height - Half Length or 1 x 16 Low Profile - Half Length
Operating System and Hypervisors
● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V (P-Core only)
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi
● Dell NativeEdge OS*
